What Is Multi-Layer AR Coating?
Multi-layer anti-reflection (AR) coating is a thin-film optical technology in which alternating layers of high- and low-refractive-index dielectric materials — typically TiO₂/SiO₂, Ta₂O₅/SiO₂, HfO₂/SiO₂, or ZrO₂/SiO₂ — are deposited on an optical substrate to destructively interfere with reflected light across a target wavelength range. A single-layer MgF₂ coating can reduce surface reflectance from ~4% (bare glass) to ~1.3% at a single wavelength. A two-layer V-coat brings this to < 0.2% at the design wavelength. A broadband multi-layer stack (4–7 layers) achieves Ravg < 0.5% across the entire visible spectrum simultaneously. The coating design is calculated using thin-film transfer matrix methods, with each layer thickness optimized to the quarter-wave optical thickness (QWOT) or its rational multiples for the target wavelength. Deposition is performed by ion-beam sputtering (IBS), magnetron sputtering, or electron-beam evaporation, with in-situ optical monitoring to control layer thickness to ±0.5 nm accuracy.
Coating Performance Specifications
| Coating Type | Wavelength Range | Reflectance | Layer Count |
|---|---|---|---|
| Single-Layer AR | Design λ ± 50 nm | R < 1.3% | 1 |
| V-Coat | Design λ ± 20 nm | R < 0.2% | 2 |
| Dual-Band (W-Coat) | Two specified λ | R < 0.5% at each λ | 3 – 4 |
| VIS Broadband AR | 400 – 700 nm | Ravg < 0.5% · Rmax < 1.0% | 4 |
| NIR Broadband AR | 700 – 1100 nm | Ravg < 0.5% · Rmax < 1.0% | 4 |
| VIS-NIR Broadband AR | 400 – 1100 nm | Ravg < 1.0% · Rmax < 1.5% | 5 – 7 |
| DUV AR | 193 nm / 248 nm | R < 0.5% at design λ | 2 – 4 |
Layer thickness accuracy: ±0.5 nm (IBS) · Uniformity: ±0.5% R across 150 mm · LDT: > 5 J/cm² @ 1064 nm / 10 ns
Compatible Substrates
| Substrate | Typical Grade | |
|---|---|---|
| 1 | Fused Silica | Corning 7980 / Tosoh ES-2000 |
| 2 | Quartz Glass | SCHOTT Lithosil Q / Heraeus Suprasil 1 |
| 3 | Borosilicate Glass | PYREX 7740 / BOROFLOAT 33 |
| 4 | Optical Glass | BK7 / N-BK7 / N-SF11 / N-LAK series |
| 5 | Sapphire | C-plane / A-plane |
| 6 | CaF₂ | UV-grade / IR-grade |
| 7 | MgF₂ | UV-grade |
| 8 | ZnSe | CVD-grade |
| 9 | Germanium | Single crystal / Polycrystalline |
| 10 | Silicon | Float Zone / Czochralski |
| 11 | Glass-Ceramic | ZERODUR / PYROCERAM 9606 |
Layer Structure & Design
| Design | Layer Materials | Deposition Method | Best For |
|---|---|---|---|
| Single-Layer | MgF₂ | E-beam evaporation | Low cost · moderate AR |
| V-Coat (2L) | HfO₂ / MgF₂ | IBS / E-beam | Single λ laser optics |
| W-Coat (3–4L) | TiO₂ / SiO₂ / MgF₂ | IBS / Magnetron | Dual-wavelength systems |
| 4-Layer BBAR | TiO₂ / SiO₂ alternating | IBS / Magnetron | VIS broadband · production |
| 7-Layer BBAR | Ta₂O₅ / SiO₂ optimized | IBS | Premium broadband · imaging |
| DUV AR | Al₂O₃ / MgF₂ | IBS (ion-assisted) | 193 nm / 248 nm lithography |
All designs calculated via transfer matrix method · In-situ optical monitoring · Custom λ and substrate available
Typical Applications
- Laser Optics: V-coat at 1064 nm, 532 nm, 355 nm for Nd:YAG and harmonic generation optics
- Imaging Systems: Broadband VIS AR on camera lenses, microscope objectives, and telescope optics
- Fiber Optics: 1310 nm / 1550 nm dual-band AR on fiber end-faces and collimators
- Medical Devices: Broadband AR on endoscope objectives and surgical imaging optics
- Display & AR/VR: Wide-angle broadband AR on waveguide substrates and combiner optics
- Semiconductor Lithography: DUV AR coatings on fused silica lenses at 193 nm and 248 nm
Environmental & Durability Standards
| Test | Condition | Standard | Result |
|---|---|---|---|
| Adhesion | Tape peel test | MIL-C-48497A | No delamination |
| Abrasion | 50 strokes eraser | MIL-C-48497A | No coating removal |
| Humidity | 95% RH · 49°C · 24h | MIL-STD-810 | No blistering |
| Temperature Cycling | –65°C to +125°C · 10 cycles | MIL-STD-810 | No cracking / peeling |
| Salt Fog | 5% NaCl · 35°C · 24h | MIL-STD-810G | No corrosion |
| Laser Damage | 1064 nm · 10 ns pulse | ISO 11254 | LDT > 5 J/cm² |
| Solubility | Distilled water · 24h immersion | ISO 9211-3 | No dissolution |

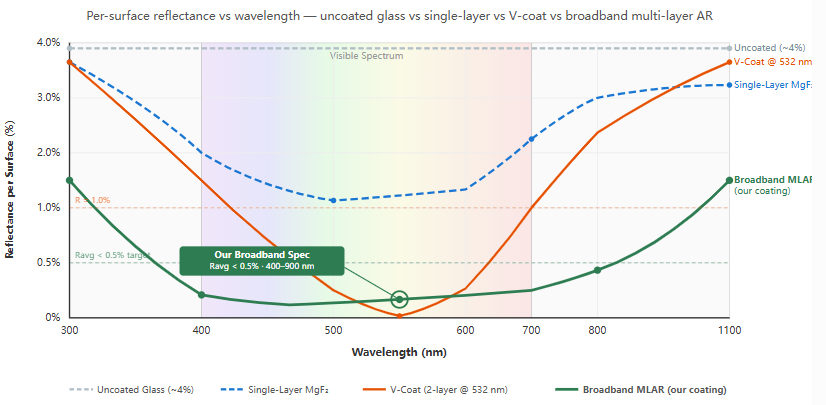

Reflectance vs Wavelength: AR Coating Comparison
