Broadband AR Coating

What Is Broadband AR Coating?

Broadband anti-reflection (BBAR) coating is a multi-layer thin-film design optimized to minimize surface reflectance simultaneously across a wide wavelength range — typically spanning 100 nm or more — rather than at a single design wavelength. Unlike a V-coat, which achieves extremely low reflectance (< 0.2%) at one specific wavelength but rises sharply on either side, a broadband design uses a more complex layer stack (typically 5–9 layers) with graded refractive index transitions to distribute the destructive interference condition across the full target band. The trade-off is a slightly higher minimum reflectance compared to a V-coat, but with dramatically better uniformity across the spectrum. This makes BBAR coatings the standard choice for white-light imaging systems, broadband laser platforms, multi-wavelength instruments, and any optical system where performance must be maintained across a range of wavelengths rather than optimized for a single line. Deposition is performed by ion-beam sputtering (IBS) or magnetron sputtering with real-time optical monitoring, ensuring layer thickness accuracy to ±0.5 nm and coating uniformity within ±0.5% reflectance across a 200 mm substrate.

Coating Performance Specifications

Layer count: 5–9 layers · Thickness accuracy: ±0.5 nm · Uniformity: ±0.5% R across 200 mm · AOI: 0°–30° standard

Compatible Substrates

Layer Structure & Design

All designs optimized via needle synthesis and transfer matrix method · Custom AOI and substrate available

Typical Applications

• Scientific Imaging: VIS-NIR BBAR on microscope objectives and spectrometer optics for broadband detection
• Machine Vision: VIS BBAR on industrial camera lenses for consistent throughput across white-light illumination
• Multi-Wavelength Laser Systems: VIS-NIR BBAR on shared-aperture optics handling 532 nm, 1064 nm, and 1550 nm simultaneously
• Astronomy & Telescope Optics: UV-VIS-NIR BBAR on corrector plates and field flatteners for broadband sky surveys
• Defense & Surveillance: Dual-band VIS/NIR BBAR on sensor windows for day/night imaging systems
• Photovoltaics: UV-VIS-NIR BBAR on solar concentrator lenses and cover glass for maximum light harvesting

Environmental & Durability Standards

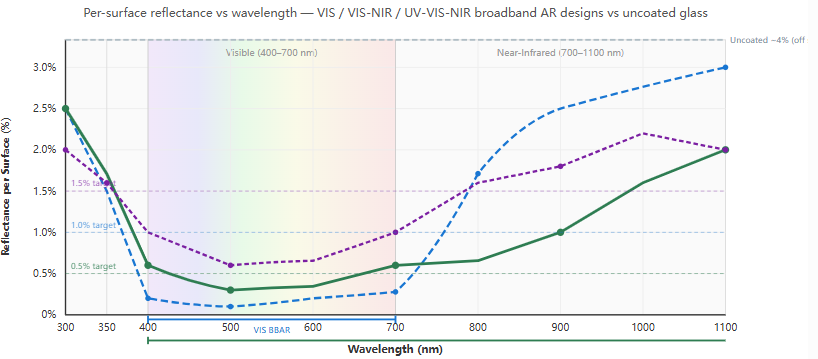

Reflectance vs Wavelength: Broadband AR Design Comparison
